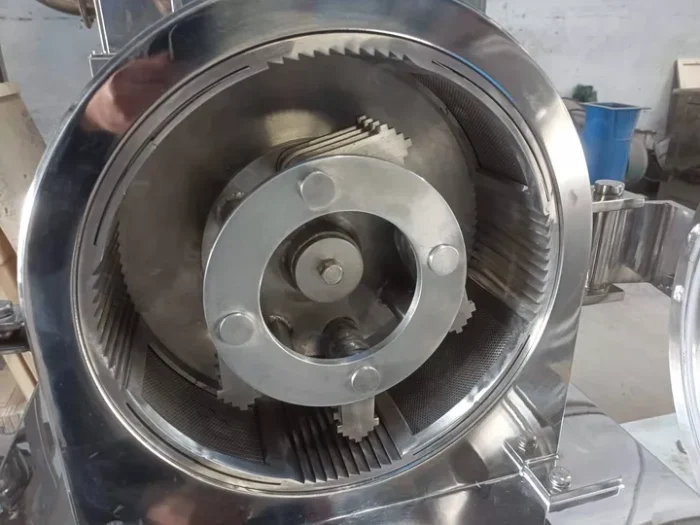

The stainless steel vegetable mill grinding machine is mainly used for the grinding of various grains, spices, nuts, and other products. It mainly uses the interaction between the high-speed rotating movable toothed disk and the fixed toothed disk to grind the material into powder particles.
This industrial garlic powder grinder is built with food-grade 304 stainless steel for corrosion resistance and easy cleaning. It ensures hygienic, contamination-free processing, offers adjustable fineness from 10 to 120 mesh, and delivers a high output of 10–3000 kg/h.
This hot-selling vegetable mill grinding machine is ideal for grinding dry materials like spices, pepper, chilli, ginger, garlic, coffee beans, cocoa beans, herbs, tea leaves, wheat, chemical materials, and dried fruits. The powder is discharged directly from the grinding chamber, and particle size can be customised with different mesh screens. It offers easy operation, stable performance, low noise, and excellent grinding efficiency.
Characteristics of a Vegetable Mill Grinding Machine
- The inner wall of the stainless steel grain mill is processed to achieve a smooth surface, and the ground powder is more in line with national standards and meets the requirements of GMP.
- The stainless steel mill has different gear plate styles for different grinding materials, which can meet the needs of different customers.
- The surface of the gear plate is smooth, wear-resistant, corrosion-resistant, and durable. It is widely used in various fields such as food, medicine, feed, and the chemical industry.
- It has a good crushing effect, high work efficiency, low labour intensity, and convenient operation.
Wide Applications of the Vegetable Powder Mill
This commercial vegetable Powder Mill can be used to grind a variety of dry materials. This small mill is often used to process various food powders, such as salt powder, ginger powder, garlic powder, seasoning powder, corn flour, etc.
High-oil materials such as sesame, walnuts, peanuts, almonds, and sunflower seeds should not be ground alone. They should be mixed with low-oil or oil-free materials to keep the oil content below 25%. For larger, high-oil materials, first use a crusher or stainless steel coarse grinder for initial crushing, then grind them further with an ultra-fine grinder.

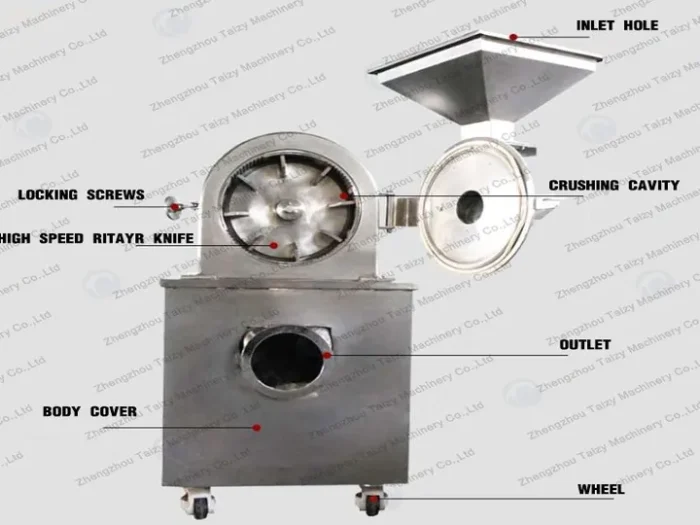

Structure of a Vegetable Mill Grinding Machine
A vegetable mill grinding machine is typically made up of a hopper, high-speed rotating blades, a grinding chamber, locking screws, a machine cover, a discharge port, wheels, and both manual and smart control buttons.
- Hopper: For feeding raw materials.

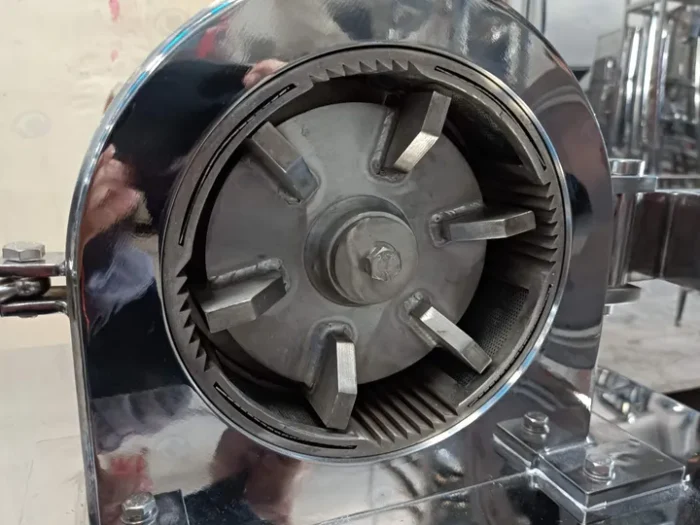

- High-Speed Rotating Blades: For grinding vegetables into powder or paste.
- Grinding Chamber: Where the material is crushed and ground.
- Locking Screws: To secure the machine parts in place.
- Machine Cover: Protects internal components and ensures safety.
- Discharge Port: Where the ground material is collected.
- Wheels: For easy mobility.
- Control Buttons: Manual and smart controls for operation.
Parameters of the Small Vegetable Powder Mill
| Model | Unit | 10B | 20B | 30B | 40B | 50B | 60B | 70B |
| production capacity | kg/h | 20-50 | 60-150 | 100-300 | 160-800 | 250-1200 | 500-1500 | 800-2000 |
| Feeding size | mm | 6 | 6 | 2-10 | 2-12 | 2-15 | 2-15 | 2-15 |
| Crushing fineness | mesh | 10-120 | 10-120 | 10-120 | 10-120 | 10-120 | 10-120 | 10-120 |
| Wight | kg | 120 | 200 | 280 | 400 | 500 | 620 | 880 |
| Spindle speed | r/min | 4500 | 4500 | 3800 | 3400 | 3200 | 3200 | 3200 |
| Motor power | kw | 2.2 | 4 | 5.5 | 11 | 15 | 22 | 37 |
| Overall dimension L*b*h | mm | 450*550*900 | 550*600*1250 | 630*700*1400 | 800*900*1550 | 850*850*1600 | 1000*900*1680 | 1200*1100*1800 |
Note: We can provide different mesh sizes according to the material. For special materials, customisation is also available. Feel free to contact us.
What Are the Advantages of a Vegetable Powder Grinding Machine?
High Production Capacity
- Covers small to large-scale processing: 10B: 20–50 kg/h, 70B: 800–2000 kg/h.
- Suitable for small workshops to large processing plants, ensuring high-efficiency production.
Versatile Feeding Size
- Can handle raw materials from 2 mm to 15 mm, depending on the model.
- Suitable for garlic, onions, carrots, chilli, ginger, herbs, and other dried vegetables.
Adjustable Grinding Fineness
- Mesh size adjustable from 10–120 mesh.
- Produces coarse to ultra-fine powder to meet different application needs.
Durable Construction
- Made of food-grade SUS304 stainless steel, corrosion-resistant and easy to clean.
- Robust and durable structure ensures long-term stable operation
Efficient High-Speed Grinding
- Spindle speed ranges from 3200–4500 r/min, depending on the model.
- High-speed blades ensure uniform, dry, and non-clumping powder.
Powerful Motor Options
- Motor power ranges from 2.2 kW (10B) up to 37 kW (70B) to meet different production demands.
- Supports continuous, high-load operation for maximum efficiency.
Compact and Mobile Design
- Dimensions range from 450×550×900 mm (10B) to 1200×1100×1800 mm (70B).
- Equipped with wheels for easy movement, saving space.
User-Friendly Operation
- Features both manual and smart control buttons.
- Safe and easy to operate, with simple maintenance.
How Does the Grain & Vegetable Mill Grinding Machine?
The vegetable powder grinding machine works by using the impact, shearing, and friction between high-speed rotating blades or discs and fixed components to crush the material. The material enters the grinding chamber through the hopper and is discharged automatically under centrifugal force.
Working Video
Why Choose Taizy?
Taizy offers factory-grade vegetable powder grinding machines that combine high efficiency, durability, and safety. Made from food-grade SUS304 stainless steel, the machines are corrosion-resistant, easy to clean, and provide adjustable grinding fineness for a wide range of materials such as garlic, onions, carrots, chilli, ginger, spices, nuts, and dried fruits. With extensive factory experience, all Taizy equipment is ISO9001 and CE certified, energy-efficient, user-friendly, and supported by professional after-sales service, ensuring stable and reliable production.
Taizy offers a full range of vegetable processing equipment, including a vegetable drying machine, cutting machines, and more. We look forward to your inquiry.
