roller type potato grading machine
roller type potato grading machine

Roller vegetable fruit classifier

This roller-type vegetable fruit classifier can be used for grading jujube, apricot, tomato and other materials.

Quick Details

Model: TZ-SS-1,TZ-SS-2,TZ-SS-3
Applicable Industries: spherical fruits and vegetables,oblong fruits and vegetables
Power: 9KW,13KW,17KW
Brand Name: Taizy
Video Outgoing-inspection: Yes
Warranty: One year
Customized service: Yes
Payment: T/T,L/C,Trade Assurance,Western Union

The rolling bar vegetable fruit classifier uses the drop between the rolling bars to classify the materials from small to large. This roller-type fruit and vegetable grading machine can be used for grading jujube, apricot, tomato, and other materials. The classified materials fall into the corresponding tracks, so materials of different sizes can be separated. It can set the spacing between the rollers according to the size of the material, and set the grading level according to the grading requirements.

Characteristic

  • The roller vegetable fruit classifier is suitable for the classification of spherical fruits and vegetables or oblong fruits and vegetables. It mainly uses different sizes of raw materials for classification.
  • The material of the roller can be selected from stainless steel mirror tube or engineering PV tube according to the characteristics of the raw material.
  • The fruit drop is small, and the part that touches the fruit is thickened and soft, and the grading process will not cause secondary damage to the fruit.
  • The number and size of the grading are adjustable.
  • It adopts all stainless steel, with high hardness and unchanging shape, and the equipment is strong and durable.

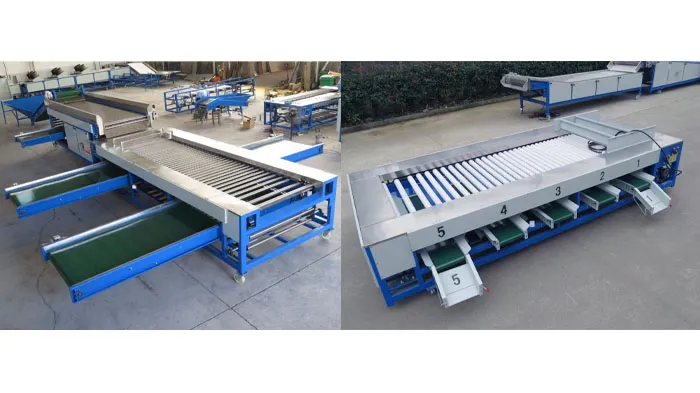

Roller vegetable fruit grader
Roller Vegetable Fruit Grader

Parameter

ModelTZ-SS-1TZ-SS-2TZ-SS-3
Number of tracks91317
Weight150kg150kg150kg
Size2.1m*0.6m*0.8m 2.1*0.6*0.8m3.2*1.2*0.8m
Power1.5kw1.5kw0.75kw

Potato tomato grading machine video
