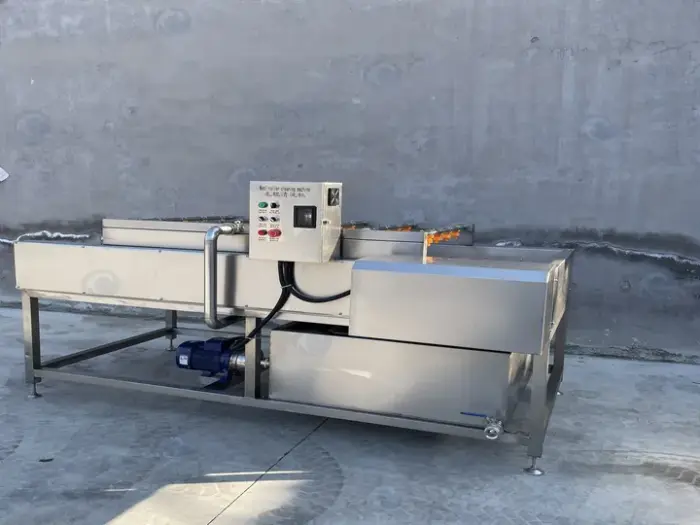

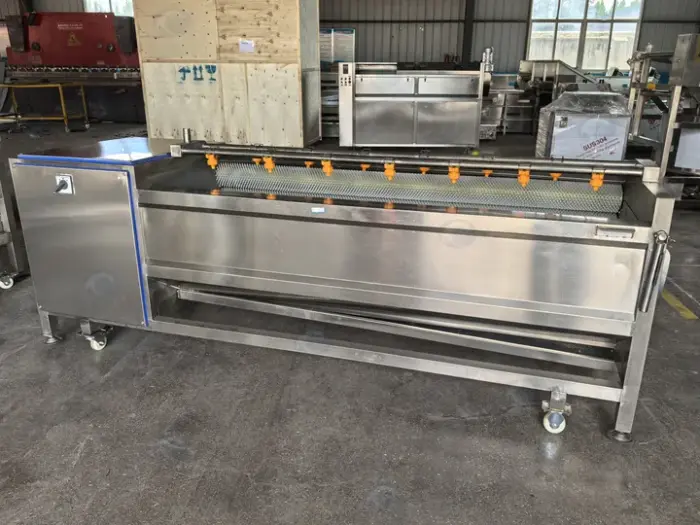

The brush root vegetable washing peeling machine is a machine developed specifically for cleaning root vegetables. The machine has the function of cleaning and peeling. It is suitable for cleaning potatoes, sweet potatoes, cassava, carrots, and other products.
The brush vegetable washing and peeling machine has two types of brushes: a soft brush and a hard brush. It has the characteristics of high output and good cleaning and peeling effect. Moreover, the root vegetable washing machine adopts all 304 stainless steel, which has a stable structure and simple operation.
This machine has a capacity ranging from 150 to 1,000 kg/h and is available in 7 different models.
Applicable raw materials for brush root vegetable washing peeling machine
The brush root vegetable washing machine is used for cleaning and peeling root vegetables. And because the vegetable washing machine has two kinds of brushes: a soft brush and a hard brush, it has the functions of washing and peeling.
The soft brush is mainly used for cleaning root vegetables. It is suitable for cleaning carrots, kelp, potatoes, yams, dates, and other products.
As cerdas da escova de cerdas duras são mais duras e têm o efeito de descascamento por fricção. Por isso é adequado para lavar e descascar vegetais. Por exemplo, lavar e descascar batata, batata doce, mandioca, gengibre, beterraba e outros produtos.
Structure of brush root vegetable washing peeling machine

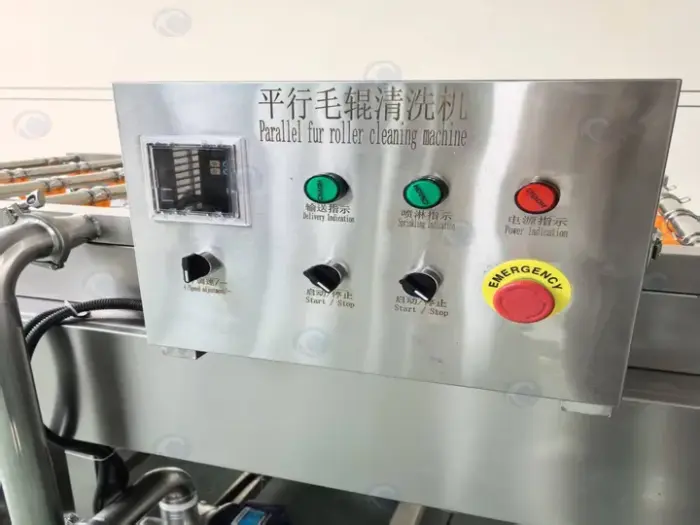

Commercial brush root vegetable washing machine mainly consists of the frame, spray tube, brush roller, water outlet, motor, and other components.
Working principle
Seu princípio de funcionamento é: batatas e outras raízes entram na máquina e o motor aciona o rolo de cabelo e as batatas para girar. O atrito gerado entre a batata e o rolo de cabelo limpa as impurezas da superfície da batata e a descasca. Ao mesmo tempo, o pulverizador de alta pressão na parte superior pulveriza água de alta pressão para limpar as impurezas na superfície das batatas. O esgoto limpo, o lodo e as cascas de batata entram na bandeja coletora na parte inferior da máquina. Abra a válvula de limpeza e descascamento de raízes e descarga lateral e as batatas lavadas podem ser descarregadas.
Advantages of brush root vegetable washing peeler machine
- A máquina consome pouca energia, é pequena, tem uma aparência bonita e é fácil de operar.
- It widely applies to cleaning root and potato vegetables such as carrots, sweet potatoes, potatoes, and sweet potatoes.
- A máquina de limpeza de raízes vegetais tem as características de um grande volume de limpeza eficaz, alta eficiência, economia de água, limpeza contínua, operação simples, longa vida útil, etc.

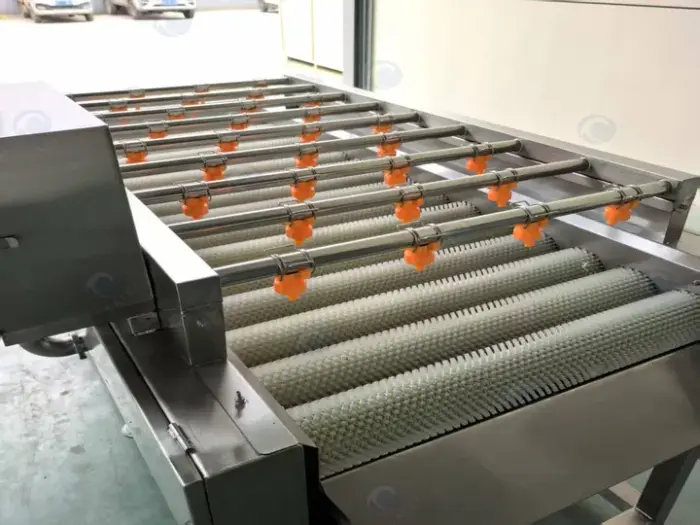

- The brush roller material is treated with a special process, which is not easily deformed and has good wear resistance.
- The box body adopts high-quality stainless steel, which does not rust.
Technical Specifications
| Modelo | Motor Power (kW) | Overall Dimensions (mm) | Material | Weight (kg) | Capacity (kg/h) |
|---|---|---|---|---|---|
| TZ-600 | 1.1 | 1450 × 850 × 1000 | 304 Stainless Steel, with Water Tray | 205 | 150 |
| TZ-800 | 1.5 | 1650 × 850 × 1000 | 304 Stainless Steel | 225 | 220 |
| TZ-1000 | 1.5 | 1850 × 850 × 1000 | 304 Stainless Steel | 250 | 300 |
| TZ-1200 | 1.5 | 2050 × 850 × 1000 | 304 Stainless Steel | 260 | 540 |
| TZ-1500 | 2.2 | 2350 × 850 × 1000 | 304 Stainless Steel | 300 | 720 |
| TZ-1800 | 3.0 | 2650 × 850 × 1000 | 304 Stainless Steel | 320 | 900 |
| TZ-2000 | 4.0 | 2850 × 850 × 1000 | 304 Stainless Steel | 350 | 1000 |
Installation and use of brush vegetable cleaning and peeling machine
- After receiving the machine, check whether the screws of each part are loose, and fix the screws of each part.
- Place the brush root vegetable cleaning machine on level ground.
- The bearings and reducer parts of the machine should be regularly filled with lubricating oil to maintain lubrication.
- The machine should be turned on and run for 2 minutes before using it. And the material should be cleaned after confirming that the machine is operating normally.
- At the beginning of cleaning, turn on the water pipe and turn on the spray water pipe for flushing at the same time.
- The handwheel on the transmission geared motor can control the speed of the brush roller.
- When not using the machine, keep it in a clean and dry environment. And the inside and outside of the machine should be kept clean and free of residues.
Máquina de limpeza vegetal com escova de parafuso totalmente automática
The automatic screw brush root vegetable cleaning machine is machine-made on the basis of the hairbrush cleaning machine. The machine adds a spiral on the basis of the brush cleaning machine. The spiral can realise the function of automatic transportation. After the root vegetables enter the machine, while the brush cleans the vegetables, the spiral pushes the vegetables forward. The automatic spiral brush cleaning machine can realise the function of automatic conveying and dispersing materials.
Typical Applications of the Brush Root Vegetable Washing and Peeling Machine

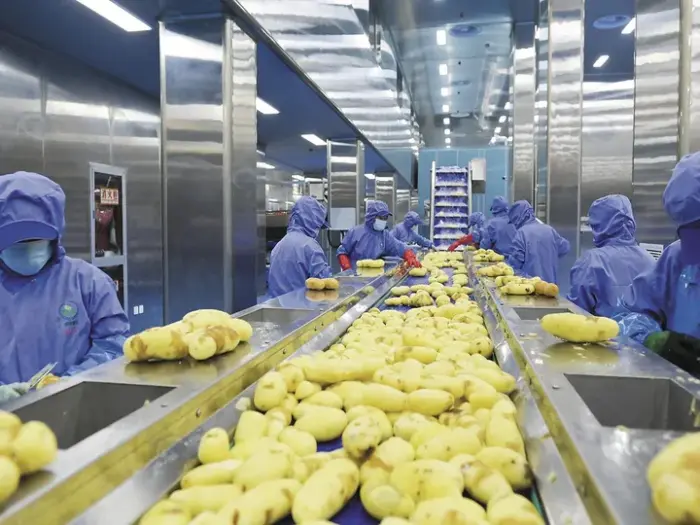

The brush root vegetable washing and peeling machine is widely used in the following processing scenarios:
- Fruit and vegetable pre-processing plants (washing and mud removal)

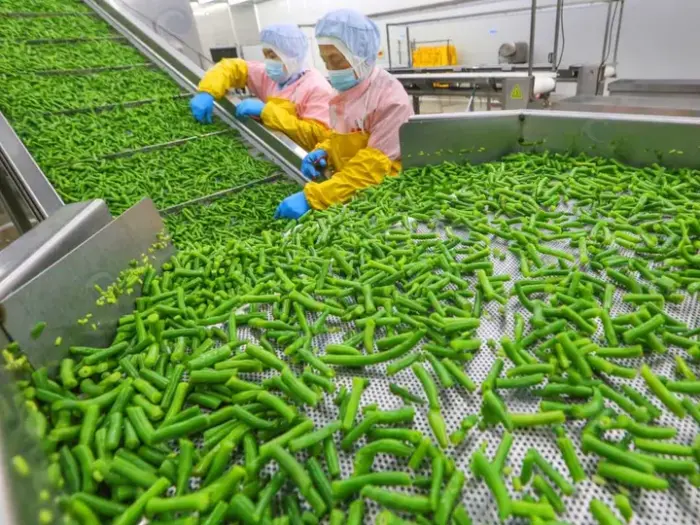

- Fresh-cut vegetable processing lines
- Pre-treatment for frozen vegetables and dehydrated vegetables
- Potato and sweet potato deep-processing lines
- Central kitchens and food distribution centres

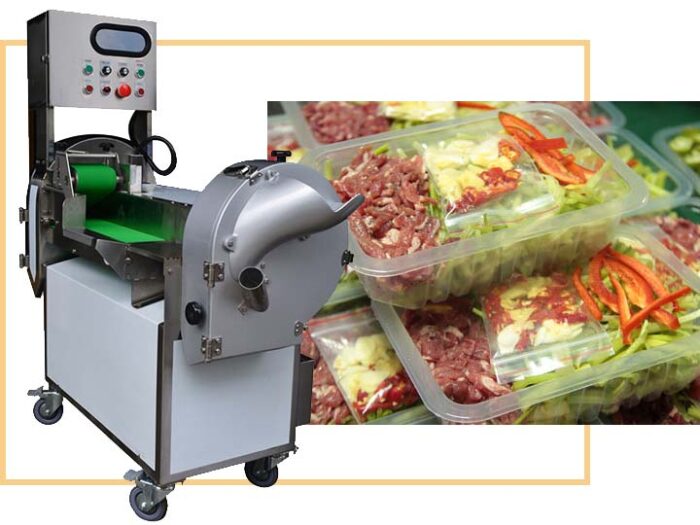

In a complete fruit and vegetable processing line, the brush root vegetable washing and peeling machine is usually used as pre-treatment equipment, working together with cutting machines, blanching machines, and drying machines.
How to choose the right brush root vegetable washing peeling machine?
When selecting a suitable brush root vegetable washing peeling machine, it is recommended to focus on the following factors:
- Type and size of raw materials: Different root vegetables require different brush hardness and roller spacing.
- Processing capacity: Choose the appropriate model based on the required hourly output.
- Peeling requirement: Cleaning-only models and washing & peeling models have different configurations.
- Factory space and water supply conditions: These factors affect machine dimensions and water circulation design.
- Customization support: Such as the number of brush rollers, roller length, voltage, and other specifications.
